Design and First Flight
The Bernard 190T transport aircraft was an enlarged and improved redesign of the Bernard 18T. Designed by Jean Galtier, the prototype F-AIXX made its first flight in the spring of 1928. This model represented a significant upgrade from its predecessor.
Features and Capacity

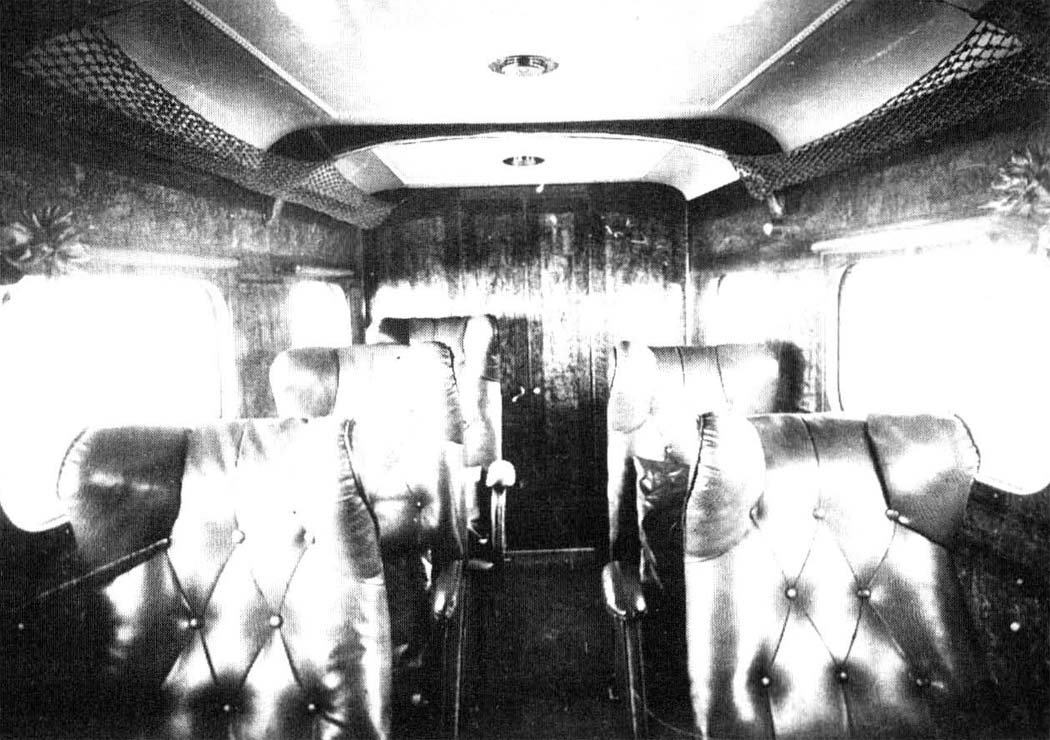

The Bernard 190T featured an enlarged cabin capable of accommodating eight passengers. It also included an enclosed crew cockpit positioned forward of the wing leading edges, and redesigned tail surfaces. These enhancements optimized both aerodynamics and passenger comfort.
Construction and Production
It retained a wooden construction and high cantilever wings. However, it was powered by a 480 hp Gnome-Rhone 9 Ady Jupiter radial engine, providing increased performance. The total production of this model reached only eight aircraft.
Technical Specifications
| Modification | Bernard 190T |
| Wingspan, m | 17.30 |
| Length, m | 12.58 |
| Height, m | 3.59 |
| Wing area, m2 | 42.90 |
| Empty weight | 1956 |
| Normal takeoff weight | 3400 |
| Engine type | 1 Piston engine Gnome & Rhone 9Ady Jupiter |
| Power, hp | 1 x 480 |
| Maximum speed, km/h | 216 |
| Cruising speed, km/h | 200 |
| Practical range, km | 1000 |
| Service ceiling, m | 3700 |
| Crew, crew members | 2 |
| Payload | up to 8 passengers |
Image and diagram gallery of the Bernard 190

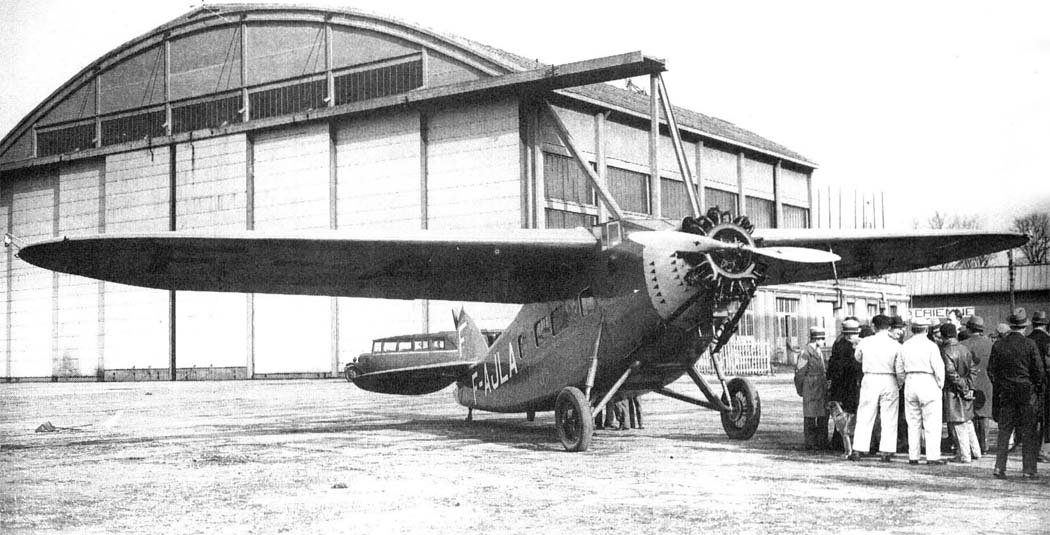

 Bernard 190 |

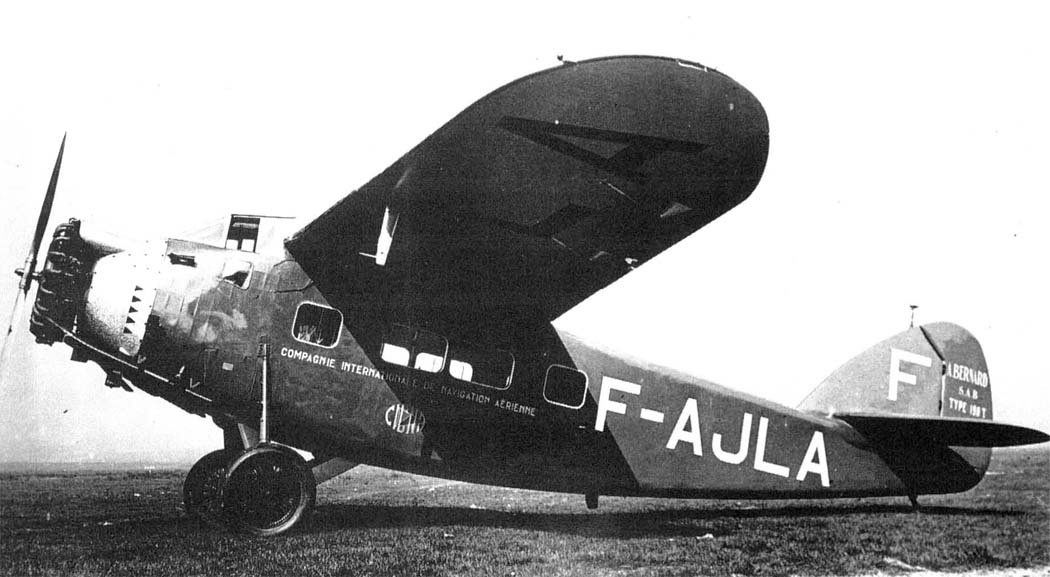

 Bernard 190 |

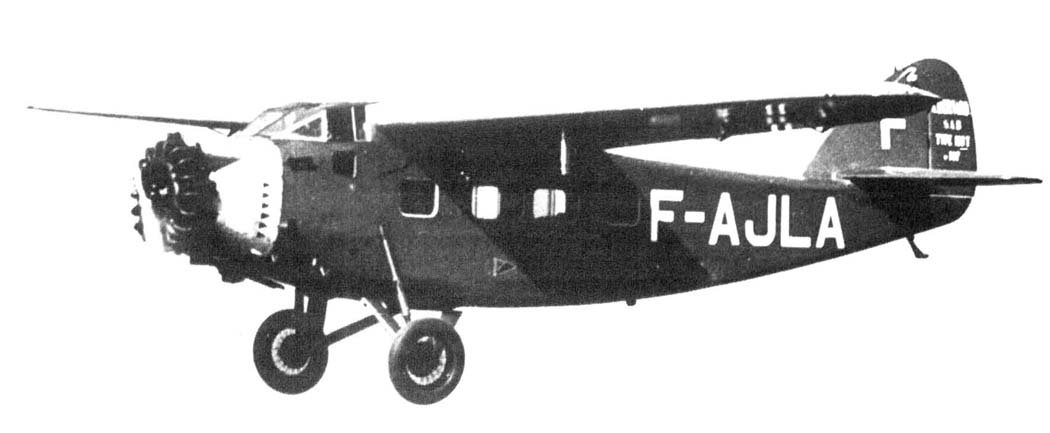

 Bernard 190 |
 Bernard 190 |
