In 1943, the American aircraft manufacturer Cessna proactively developed the P-260 project, a light transport aircraft for the U.S. Army Air Forces. This project represented a modified version of the C/UC-78 transport, adapted for more powerful engines. The C-106 Loadmaster was designed with a tubular steel fuselage covered in fabric and semi-monocoque wooden wings, combining materials for a light yet sturdy structure.
For its powerplant, two air-cooled Pratt & Whitney R-1340 radial engines were chosen, each boasting 600 hp (450 kW) and fitted with two-bladed propellers. This configuration promised robust performance for the transport duties it was intended to undertake.
Successful Trials and Production Prospects

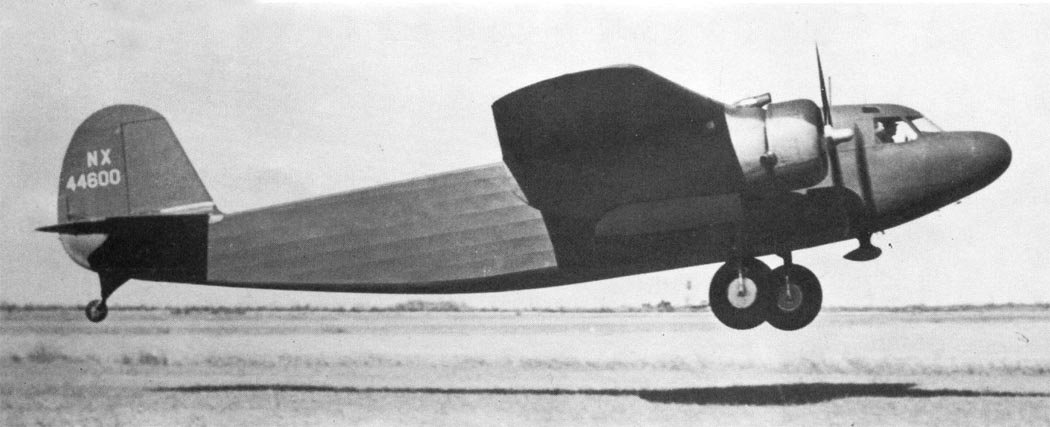

During 1943, two prototypes were built for evaluation tests: the C-160 (NX24176) with R-1340-S3H1 engines and the C-160A (NX44600) with R-1340-AN-2. These prototypes underwent rigorous military trials, where the aircraft received very positive reviews for its performance and reliability.
Due to its successful results, the C-106 Loadmaster was recommended for series production. Towards the end of 1943, a preliminary contract was signed for the manufacture of 500 units, indicating great confidence in Cessna’s design.
A Promising Project Thwarted
Despite the initial enthusiasm and the substantial order, a shortage of plywood, an essential material for its construction, prevented Cessna from commencing mass production. This factor, common during the war years, ultimately thwarted the widespread deployment of a highly promising light transport aircraft capable of handling up to 1100 kg of cargo.
Technical Specifications
| Modification | C-106 |
| Wingspan, m | 19.71 |
| Length, m | 15.57 |
| Height, m | 3.73 |
| Empty weight | 4445 |
| Normal takeoff weight | 6713 |
| Engine type | 2 Piston engines Pratt & Whitney R-1340 |
| Power, hp | 2 x 600 |
| Maximum speed, km/h | 314 |
| Cruising speed, km/h | 274 |
| Practical range, km | 1200 |
| Crew, crew members | 4 |
| Payload: | 1100 kg of cargo |
Image and diagram gallery of the Cessna C-106 Loadmaster

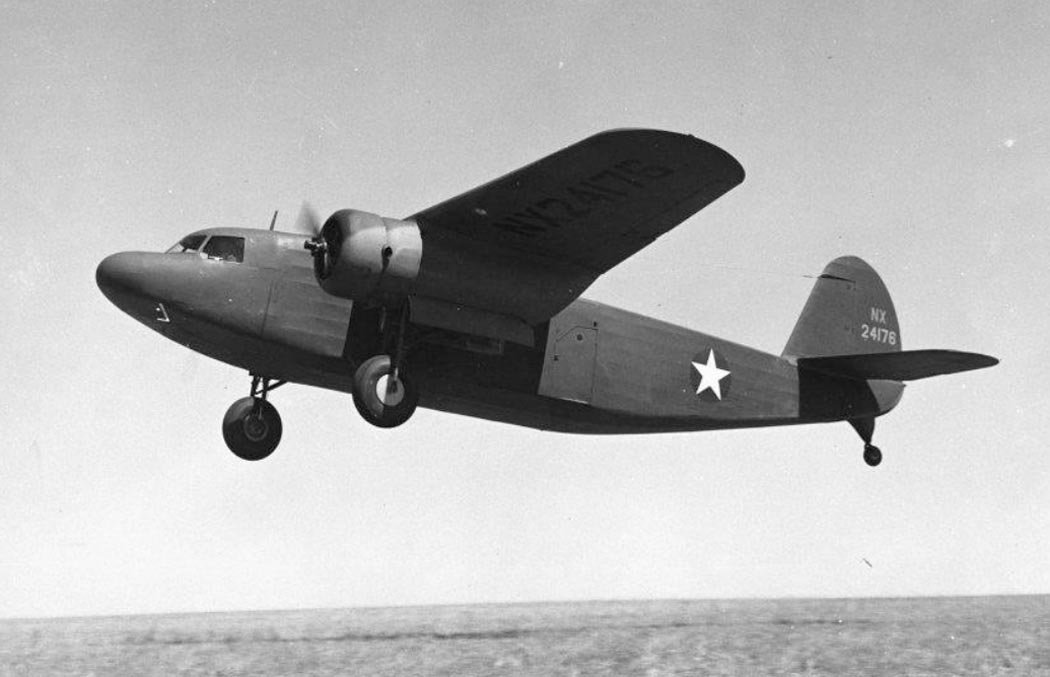

 C-106 Loadmaster |

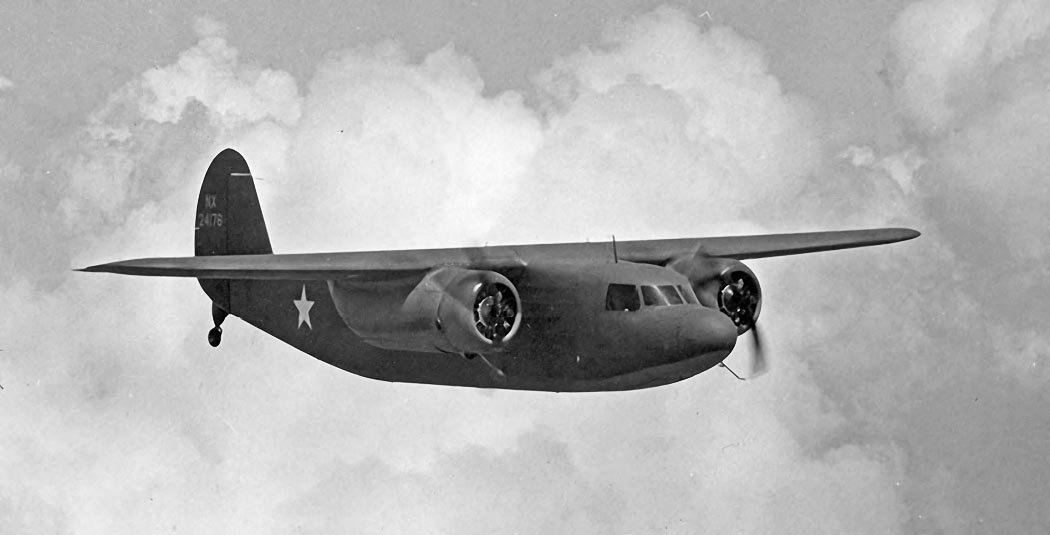

 C-106 Loadmaster |

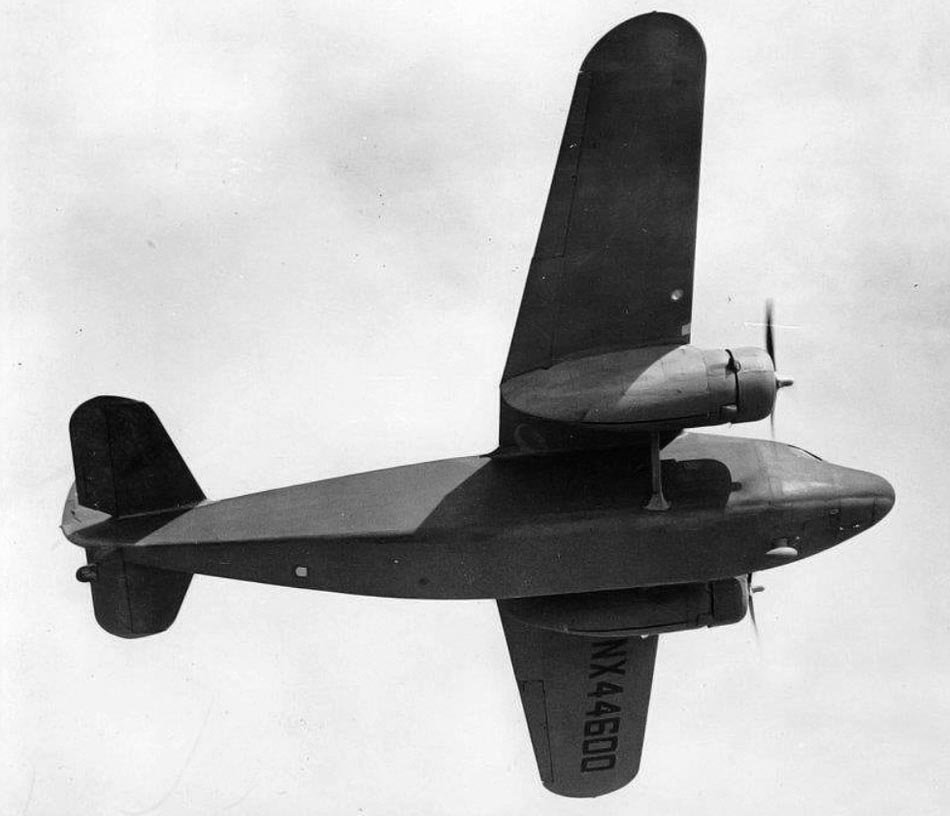

 C-106 Loadmaster |

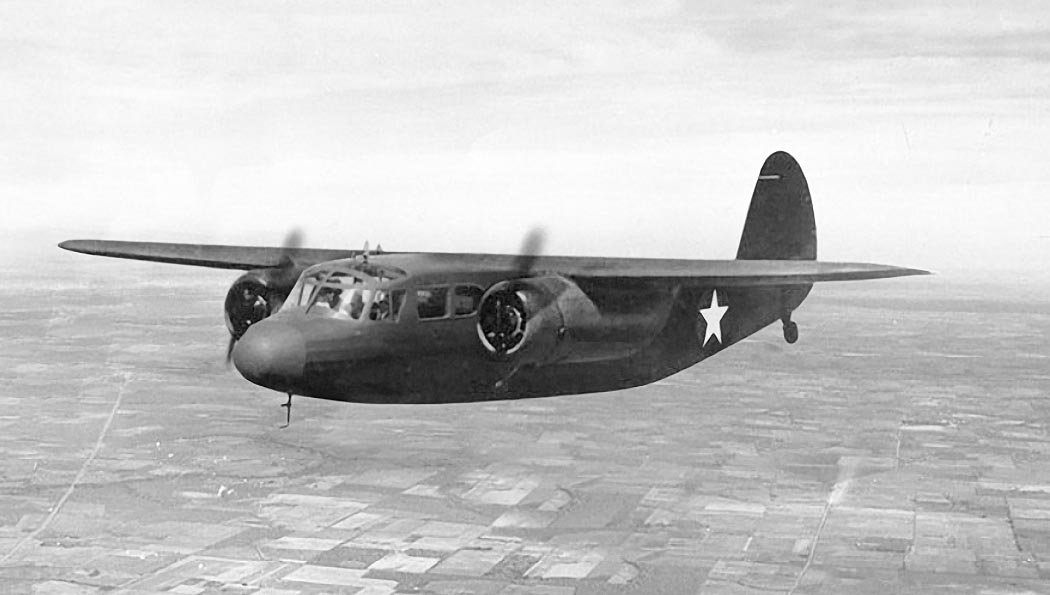

 C-106 Loadmaster |

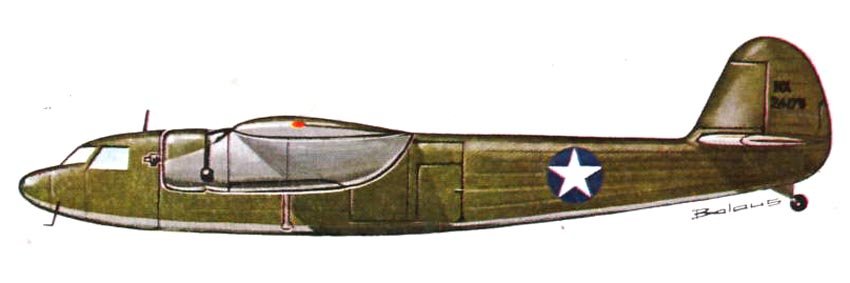

 C-106 Loadmaster |

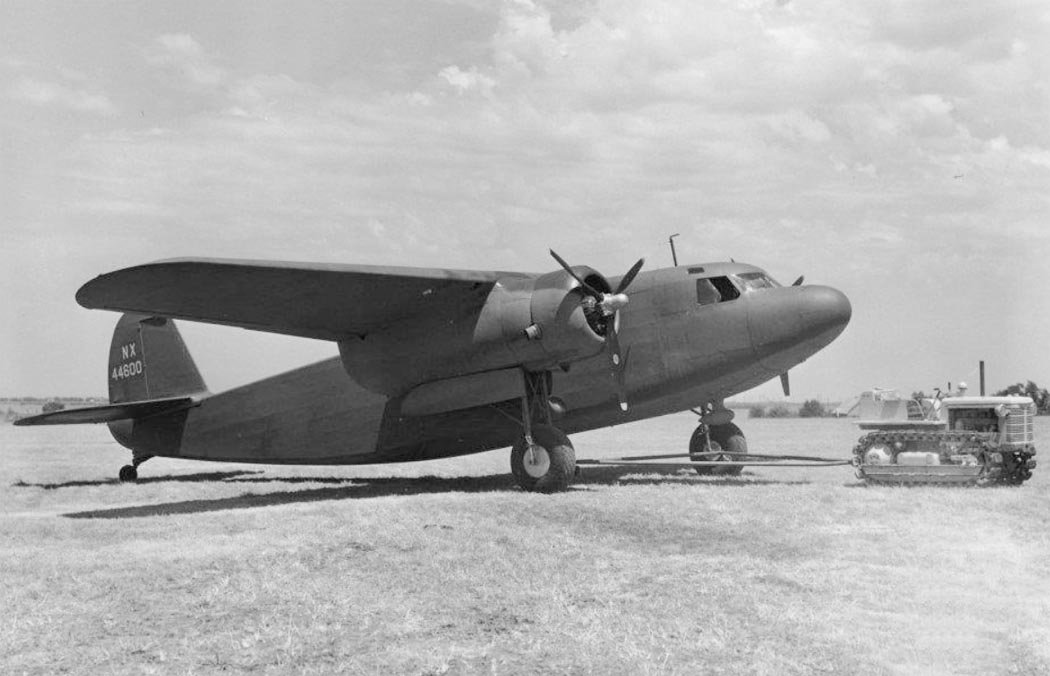

 C-106 Loadmaster |
 C-106 Loadmaster |

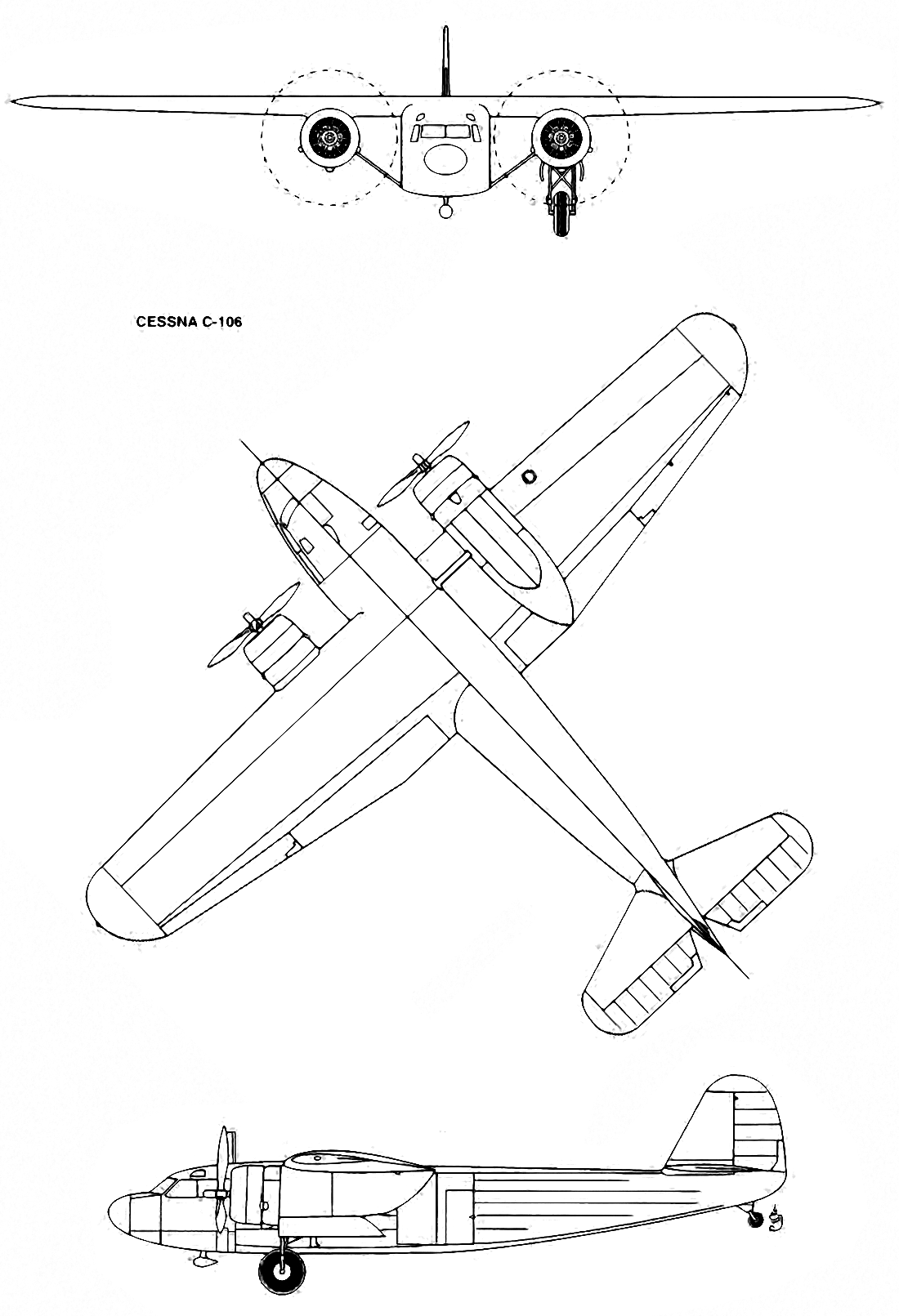

 C-106 Loadmaster |
 C-106 Loadmaster |
