The project for the light multi-purpose aircraft C-5 by the Italian aircraft manufacturing company Cantieri Aeronautici Bergamaschi (CAB) from Ponte San Pietro ended in another failure. Like the C-4, this aircraft was developed by engineer Carlo Maria Calligaris.
C-5 Development and Design
The C-5 was built in 1929, similar to the C-4. It was a two-seat, single-strut biplane with V-struts, equipped with an English four-cylinder ADC Cirrus Mk.II engine producing 85 hp (75 kW).
Technical Specifications and Features
The two crew members were accommodated in tandem cockpits, with a luggage compartment located behind them.
Operational History and Registration

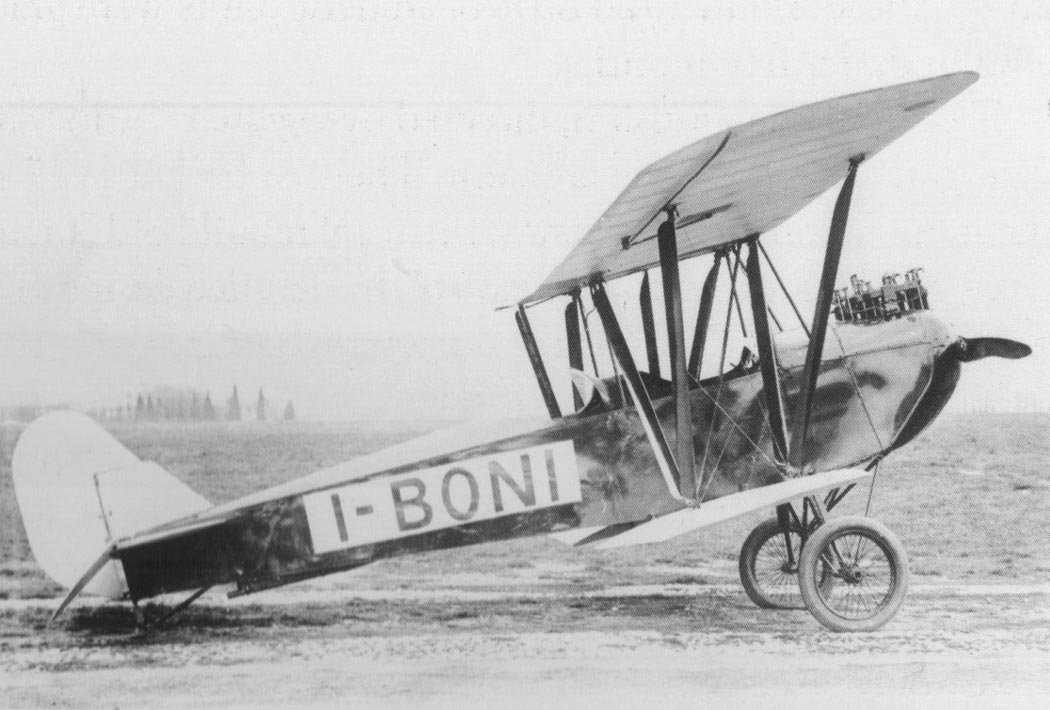

The sole aircraft received the registration number I-BONI only in 1934 and was used for various shows until 1940.
Technical Specifications
| Modification | S-5 |
| Upper wingspan, m | 9.50 |
| Aircraft length, m | 6.15 |
| Aircraft height, m | 2.63 |
| Wing area, m2 | 21.03 |
| Maximum takeoff weight, kg | 600 |
| Engine type | 1 Piston engine ADC Cirrus Mk.II |
| Power, hp | 1 x 85 |
| Maximum speed, km/h | 140 |
| Crew | 2 crew |
Image gallery of the C-5
